Generating a mutation profile

Quickstart

Make sure to go through the Quickstart guide first where the basics of VARGRAM syntax are explained.

Mutation Profile

plot

During an outbreak or a period of genomic surveillance, batches of samples are taken from the field or testing centers that are then sequenced. Often, the diversity of these sequences need to be quickly identified to understand the evolution of a pathogen.

A mutation profile such as the one above is an intuitive figure that shows you what mutations are present in which genes by how many times. Differences among batches can be quickly seen and also be compared against reference sets of mutations. VARGRAM makes it easy to generate these figures.

Input

Providing sequence files

There are two main sets of input that you can provide. The first is the sequence files which include (1) the FASTA file of sequences or a directory of FASTA files for multiple batches, (2) the reference FASTA, and (3) a genome annotation file following the GFF3 format.

Is VARGRAM only applicable to viral data?

VARGRAM relies on Nextclade to perform mutation calling when sequence files are provided, and Nextclade currently supports viral data only. However, if you can perform mutation calling through another tool, you can still use VARGRAM to create a mutation profile of other organisms provided that you generate a CSV file of the mutations. See Other features.

Instead of providing the reference FASTA, you may also specify the name or shortcut of a Nextclade dataset. In this case, the annotation file does not need to be provided. VARGRAM will download the reference and the annotation (these are deleted after use).

When sequence files are provided, VARGRAM will run Nextclade CLI and capture the analysis file so make sure that Nextclade is installed. These files can be provided to VARGRAM through the vargram class:

vg = vargram(seq='path/to/covid_samples/', # Provide FASTA of sequences or directory containing FASTA files
            ref='path/to/covid_reference.fa', # Provide reference sequence
            gene='path/to/covid_annotation.gff') # Provide genome annotation

vg = vargram(seq='path/to/covid_samples/', # Provide sample sequences
            ref='sars-cov-2') # Provide reference name/shortcut

Nextclade dataset name

To view available datasets, run nextclade dataset list. The official names and shortcuts are on the first name column—not the attribute column. You may alternatively run nextclade dataset list --only-names which only lists the recognized dataset names.

FASTA directory

The directory for the sequences need not contain only FASTA files. VARGRAM will ignore all other files in the directory that do not have a .fasta or .fa extension. But make sure that only the FASTA files of interest are in the directory.

Removal of rows with errors and warnings

VARGRAM removes sample rows in the captured analysis file that Nextclade flags with an error or warning

Providing analysis files

You may already have a Nextclade analysis file obtained through Nextclade CLI or Nextclade Web. In this case, simply provide its path:

vg = vargram(data='path/to/nextclade_analysis.csv')
If you want to order the genes in the profile, you must also provide the annotation file using the same keyword argument gene.

The VARGRAM data output can also be provided as an input but you must specify its format:

vg = vargram(data='path/to/vargram_analysis.csv',
             format='vargram')

Nextclade CLI vs. Nextclade Web

Nextclade CLI and Nextclade Web yield identical results when the datasets they use are also the same. If you get different mutation profiles, try updating your dataset. See this discussion on Nexstrain for more info.

Output

Terminal methods are independent

VARGRAM outputs are produced by calling terminal methods, which are independent of each other and can therefore be called in any order.

Showing the plot

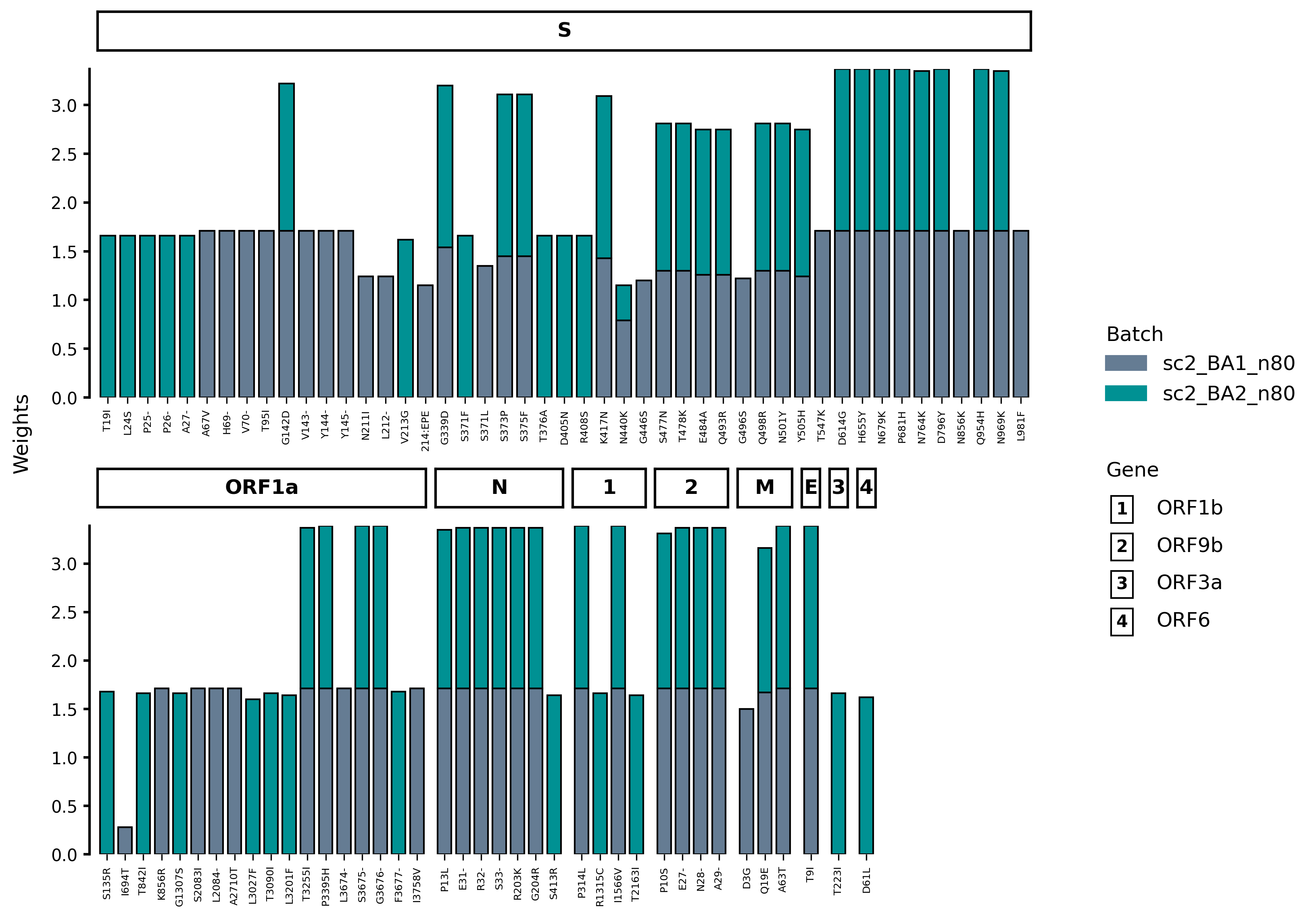

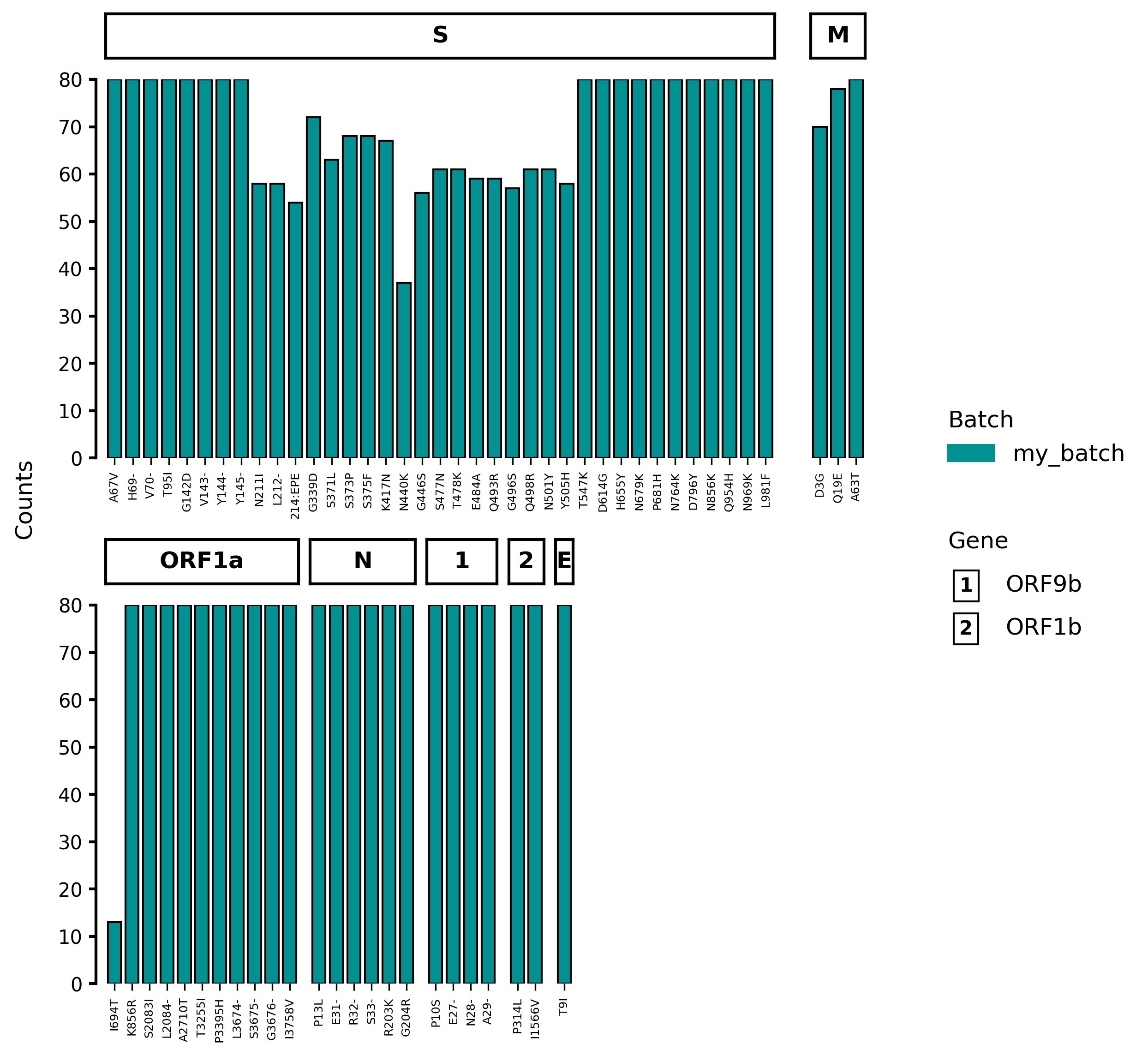

To show the mutation profile, simply call the show() method, e.g.

vg = vargram(data='path/to/nextclade_analysis.csv')
vg.profile()
vg.show()

Getting summary data

The summary data for the mutation profile contains the total counts of mutations and the counts per batch. It can be accessed using the stat() method which returns a Pandas DataFrame:

vg = vargram(data='path/to/nextclade_analysis.csv')
vg.profile()
vg.stat()
The summary data contains the following columns:

gene mutation position type my_batch sum
E T9I 9 sub 80 80
M D3G 3 sub 70 70
M Q19E 19 sub 78 78
M A63T 63 sub 80 80
N P13L 13 sub 80 80
N E31- 31 del 80 80
N R32- 32 del 80 80
N S33- 33 del 80 80
N R203K 203 sub 80 80
N G204R 204 sub 80 80
ORF1a K856R 856 sub 80 80
ORF1a S2083I 2083 sub 80 80
ORF1a L2084- 2084 del 80 80
ORF1a A2710T 2710 sub 80 80
ORF1a T3255I 3255 sub 80 80
ORF1a P3395H 3395 sub 80 80
ORF1a L3674- 3674 del 80 80
ORF1a S3675- 3675 del 80 80
ORF1a G3676- 3676 del 80 80
ORF1a I3758V 3758 sub 80 80
ORF1b P314L 314 sub 80 80
ORF1b I1566V 1566 sub 80 80
ORF9b P10S 10 sub 80 80
ORF9b E27- 27 del 80 80
ORF9b N28- 28 del 80 80
ORF9b A29- 29 del 80 80
S A67V 67 sub 80 80
S H69- 69 del 80 80
S V70- 70 del 80 80
S T95I 95 sub 80 80
S G142D 142 sub 80 80
S V143- 143 del 80 80
S Y144- 144 del 80 80
S Y145- 145 del 80 80
S N211I 211 sub 58 58
S L212- 212 del 58 58
S 214:EPE 214 in 54 54
S G339D 339 sub 72 72
S S371L 371 sub 63 63
S S373P 373 sub 68 68
S S375F 375 sub 68 68
S K417N 417 sub 67 67
S G446S 446 sub 56 56
S S477N 477 sub 61 61
S T478K 478 sub 61 61
S E484A 484 sub 59 59
S Q493R 493 sub 59 59
S G496S 496 sub 57 57
S Q498R 498 sub 61 61
S N501Y 501 sub 61 61
S Y505H 505 sub 58 58
S T547K 547 sub 80 80
S D614G 614 sub 80 80
S H655Y 655 sub 80 80
S N679K 679 sub 80 80
S P681H 681 sub 80 80
S N764K 764 sub 80 80
S D796Y 796 sub 80 80
S N856K 856 sub 80 80
S Q954H 954 sub 80 80
S N969K 969 sub 80 80
S L981F 981 sub 80 80

At the minimum, the columns include the gene, mutation, position, mutation type as well as the name of the batch (here, my_batch) and the total count of the mutation (sum). The data above is the summary data for BA1_analysis_cli.csv. When there is only one batch, the default batch name is my_batch.

gene mutation position type BA1_analysis_cli BA2_analysis_cli sum
E T9I 9 sub 80 80 160
M D3G 3 sub 70 0 70
M Q19E 19 sub 78 71 149
M A63T 63 sub 80 80 160
N P13L 13 sub 80 78 158
N E31- 31 del 80 79 159
N R32- 32 del 80 79 159
N S33- 33 del 80 79 159
N R203K 203 sub 80 79 159
N G204R 204 sub 80 79 159
N S413R 413 sub 0 78 78
ORF1a S135R 135 sub 0 80 80
ORF1a I694T 694 sub 13 0 13
ORF1a T842I 842 sub 0 79 79
ORF1a K856R 856 sub 80 0 80
ORF1a G1307S 1307 sub 0 79 79
ORF1a T1543I 1543 sub 0 7 7
ORF1a S2083I 2083 sub 80 0 80
ORF1a L2084- 2084 del 80 0 80
ORF1a I2138V 2138 sub 8 0 8
ORF1a A2710T 2710 sub 80 0 80
ORF1a L3027F 3027 sub 0 76 76
ORF1a T3090I 3090 sub 0 79 79
ORF1a L3201F 3201 sub 0 78 78
ORF1a T3255I 3255 sub 80 79 159
ORF1a P3395H 3395 sub 80 80 160
ORF1a L3674- 3674 del 80 0 80
ORF1a S3675- 3675 del 80 80 160
ORF1a G3676- 3676 del 80 80 160
ORF1a F3677- 3677 del 0 80 80
ORF1a I3758V 3758 sub 80 0 80
ORF1b P314L 314 sub 80 80 160
ORF1b R1315C 1315 sub 0 79 79
ORF1b I1566V 1566 sub 80 80 160
ORF1b T2163I 2163 sub 0 78 78
ORF3a T223I 223 sub 0 79 79
ORF6 D61L 61 sub 0 77 77
ORF9b P10S 10 sub 80 76 156
ORF9b E27- 27 del 80 79 159
ORF9b N28- 28 del 80 79 159
ORF9b A29- 29 del 80 79 159
S T19I 19 sub 0 79 79
S L24S 24 sub 0 79 79
S P25- 25 del 0 79 79
S P26- 26 del 0 79 79
S A27- 27 del 0 79 79
S A67V 67 sub 80 0 80
S H69- 69 del 80 0 80
S V70- 70 del 80 0 80
S T95I 95 sub 80 0 80
S G142D 142 sub 80 72 152
S V143- 143 del 80 0 80
S Y144- 144 del 80 0 80
S Y145- 145 del 80 0 80
S N211I 211 sub 58 0 58
S L212- 212 del 58 0 58
S V213G 213 sub 0 77 77
S 214:EPE 214 in 54 0 54
S G339D 339 sub 72 79 151
S S371F 371 sub 5 79 84
S S371L 371 sub 63 0 63
S S373P 373 sub 68 79 147
S S375F 375 sub 68 79 147
S T376A 376 sub 5 79 84
S D405N 405 sub 5 79 84
S R408S 408 sub 5 79 84
S K417N 417 sub 67 79 146
S N440K 440 sub 37 17 54
S G446S 446 sub 56 0 56
S S477N 477 sub 61 72 133
S T478K 478 sub 61 72 133
S E484A 484 sub 59 71 130
S Q493R 493 sub 59 71 130
S G496S 496 sub 57 0 57
S Q498R 498 sub 61 72 133
S N501Y 501 sub 61 72 133
S Y505H 505 sub 58 72 130
S T547K 547 sub 80 0 80
S D614G 614 sub 80 79 159
S H655Y 655 sub 80 79 159
S N679K 679 sub 80 79 159
S P681H 681 sub 80 79 159
S N764K 764 sub 80 78 158
S D796Y 796 sub 80 79 159
S Q853R 853 sub 6 0 6
S N856K 856 sub 80 0 80
S Q954H 954 sub 80 79 159
S N969K 969 sub 80 78 158
S L981F 981 sub 80 0 80

When there are multiple batches, each batch gets their own column containing the mutation counts in that batch. The data above is the summary data for omicron_analysis_cli.csv.

gene mutation position type BA1_analysis_cli BA2_analysis_cli sum BA.1 BA.2
E T9I 9 sub 80 80 160 1 1
M D3G 3 sub 70 0 70 1 0
M Q19E 19 sub 78 71 149 1 1
M A63T 63 sub 80 80 160 1 1
N P13L 13 sub 80 78 158 1 1
N E31- 31 del 80 79 159 1 1
N R32- 32 del 80 79 159 1 1
N S33- 33 del 80 79 159 1 1
N R203K 203 sub 80 79 159 1 1
N G204R 204 sub 80 79 159 1 1
N S413R 413 sub 0 78 78 0 1
ORF1a S135R 135 sub 0 80 80 0 1
ORF1a I694T 694 sub 13 0 13 0 0
ORF1a T842I 842 sub 0 79 79 0 1
ORF1a K856R 856 sub 80 0 80 1 0
ORF1a G1307S 1307 sub 0 79 79 0 1
ORF1a T1543I 1543 sub 0 7 7 0 0
ORF1a S2083I 2083 sub 80 0 80 1 0
ORF1a L2084- 2084 del 80 0 80 1 0
ORF1a I2138V 2138 sub 8 0 8 0 0
ORF1a A2710T 2710 sub 80 0 80 1 0
ORF1a L3027F 3027 sub 0 76 76 0 1
ORF1a T3090I 3090 sub 0 79 79 0 1
ORF1a L3201F 3201 sub 0 78 78 0 1
ORF1a T3255I 3255 sub 80 79 159 1 1
ORF1a P3395H 3395 sub 80 80 160 1 1
ORF1a L3674- 3674 del 80 0 80 1 0
ORF1a S3675- 3675 del 80 80 160 1 1
ORF1a G3676- 3676 del 80 80 160 1 1
ORF1a F3677- 3677 del 0 80 80 0 1
ORF1a I3758V 3758 sub 80 0 80 1 0
ORF1b P314L 314 sub 80 80 160 1 1
ORF1b R1315C 1315 sub 0 79 79 0 1
ORF1b I1566V 1566 sub 80 80 160 1 1
ORF1b T2163I 2163 sub 0 78 78 0 1
ORF3a T223I 223 sub 0 79 79 0 1
ORF6 D61L 61 sub 0 77 77 0 1
ORF9b P10S 10 sub 80 76 156 1 1
ORF9b E27- 27 del 80 79 159 0 1
ORF9b N28- 28 del 80 79 159 1 1
ORF9b A29- 29 del 80 79 159 1 1
S T19I 19 sub 0 79 79 0 1
S L24S 24 sub 0 79 79 0 1
S P25- 25 del 0 79 79 0 1
S P26- 26 del 0 79 79 0 1
S A27- 27 del 0 79 79 0 1
S A67V 67 sub 80 0 80 1 0
S H69- 69 del 80 0 80 1 0
S V70- 70 del 80 0 80 1 0
S T95I 95 sub 80 0 80 1 0
S G142D 142 sub 80 72 152 1 1
S V143- 143 del 80 0 80 1 0
S Y144- 144 del 80 0 80 1 0
S Y145- 145 del 80 0 80 1 0
S N211I 211 sub 58 0 58 1 0
S L212- 212 del 58 0 58 1 0
S V213G 213 sub 0 77 77 0 1
S 214:EPE 214 in 54 0 54 1 0
S G339D 339 sub 72 79 151 1 1
S S371F 371 sub 5 79 84 0 1
S S371L 371 sub 63 0 63 1 0
S S373P 373 sub 68 79 147 1 1
S S375F 375 sub 68 79 147 1 1
S T376A 376 sub 5 79 84 0 1
S D405N 405 sub 5 79 84 0 1
S R408S 408 sub 5 79 84 0 1
S K417N 417 sub 67 79 146 1 1
S N440K 440 sub 37 17 54 1 1
S G446S 446 sub 56 0 56 1 0
S S477N 477 sub 61 72 133 1 1
S T478K 478 sub 61 72 133 1 1
S E484A 484 sub 59 71 130 1 1
S Q493R 493 sub 59 71 130 1 1
S G496S 496 sub 57 0 57 1 0
S Q498R 498 sub 61 72 133 1 1
S N501Y 501 sub 61 72 133 1 1
S Y505H 505 sub 58 72 130 1 1
S T547K 547 sub 80 0 80 1 0
S D614G 614 sub 80 79 159 1 1
S H655Y 655 sub 80 79 159 1 1
S N679K 679 sub 80 79 159 1 1
S P681H 681 sub 80 79 159 1 1
S N764K 764 sub 80 78 158 1 1
S D796Y 796 sub 80 79 159 1 1
S Q853R 853 sub 6 0 6 0 0
S N856K 856 sub 80 0 80 1 0
S Q954H 954 sub 80 79 159 1 1
S N969K 969 sub 80 78 158 1 1
S L981F 981 sub 80 0 80 1 0

Keys (here, BA.1 and BA.2) get their own columns. A 1 indicates that the mutation is part of that key and a 0 indicates that it's not. The data above is the summary data for omicron_analysis_cli.csv with the keys BA1_key.csv and BA2_key.csv.

Saving the plot or data

Use the save() method to save either the mutation profile figure or the accompanying data:

vg = vargram(data='path/to/nextclade_analysis.csv')
vg.profile()
vg.save('my_figure.png')

When the figure is saved (i.e. when the extension is .png, .pdf or .jpg), save() acts like Matplotlib's matplotlib.pyplot.savefig() with the bbox_inches argument set to tight. Thus, save() can take other savefig() arguments like dpi or transparent, e.g.

vg = vargram(data='path/to/nextclade_analysis.csv')
vg.profile()
vg.save('my_figure.png', dpi=300, transparent=True)


vg = vargram(data='path/to/nextclade_analysis.csv')
vg.profile()
vg.save('my_data.csv')

When the summary data is saved (i.e. when the extension is not .png, .pdf or .jpg), save() acts like Pandas' pandas.DataFrame.to_csv() with the sep argument automatically set for .csv (sep=','), .tsv (sep='\t') and .txt (sep=' ') extensions, and index set to False. Thus, save() can take other to_csv() arguments like columns, e.g.

vg = vargram(data='path/to/nextclade_analysis.csv')
vg.profile()
vg.save('my_data.csv', index=True, columns=['gene','mutation','batch_1'])

Customization

Setting the y-axis type and the count threshold

The y-axis of the profile can show either the raw count of a mutation (i.e. no. of sequences that has the mutation) or its weight. The weight of a mutation is simply the count of a mutation in a batch divided by the sum of all mutation counts in that batch. Whether the count or weight is shown can be changed through the profile() method:

vg = vargram(data='path/to/nextclade_analysis.csv')
vg.profile(ytype='counts')
vg.show()

vg = vargram(data='path/to/nextclade_analysis.csv')
vg.profile(ytype='weights')
vg.show()

By default, when multiple batches are provided, the y-axis shows the weights.

On the other hand, the threshold (default 50) is the minimum count or no. of occurences of a mutation in a batch that is needed for a mutation to be included in the figure. The threshold is applied per batch and a mutation will only be shown in the batch that it meets the threshold but it will have a count of zero in every other batch.

Threshold example

To make this more concrete, suppose we have two batches, each with 200 sequences. Suppose a mutation D3G occurs in 150 out of 200 samples in the first batch, but it occurs only 30 times in the second batch. With a default threshold of 50, D3G will show up in the profile as a mutation in the first batch with a count of 150. But D3G will not register as a mutation in the second batch--its count will be zero even if 30 sequences actually have the mutation in that batch.

The threshold can also be changed through profile():

vg = vargram(data='path/to/nextclade_analysis.csv')
vg.profile(threshold=10)
vg.show()

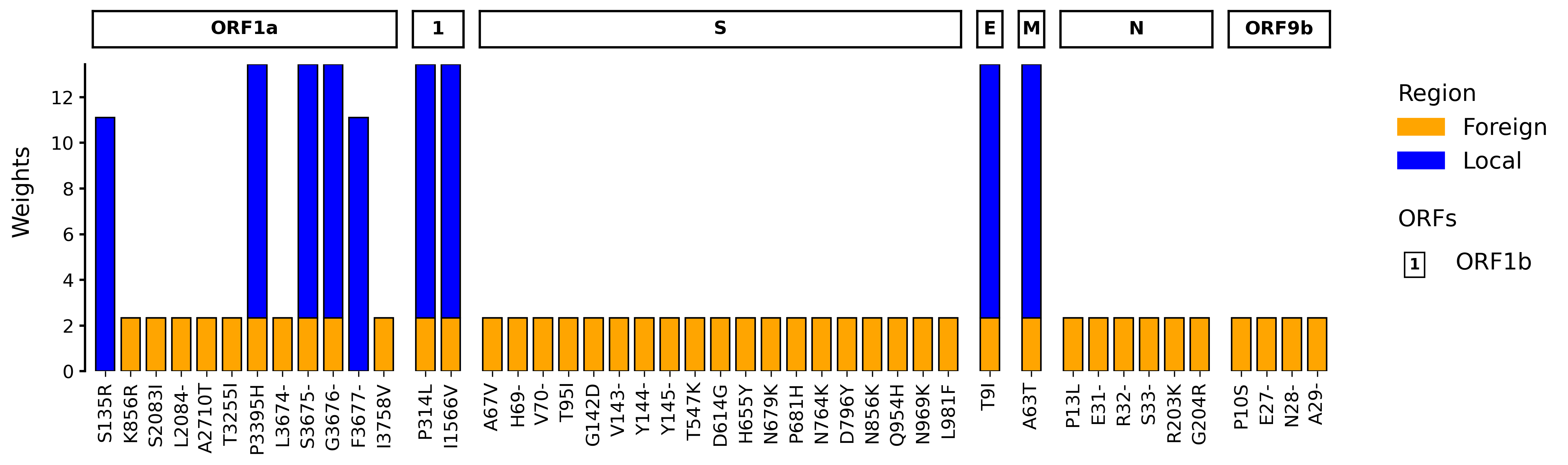

Changing aesthetic attributes

Aesthetic attributes like colors, labels, and font sizes can be changed through the aes() method:

vg = vargram(data='path/to/nextclade_analysis.csv')
vg.profile()
vg.aes(stack_title='Region', # Change batch legend title
        stack_label=['Foreign', 'Local'], # Change batch names
        stack_color=['#E33E84', '#009193'], # Change batch bar colors
        group_title='ORFs', # Change gene legend title
        legtitle_fontsize=15, # Change legend title font size
        legentry_fontsize=10, # Change legend entry font size
        ylabel='Normalized Count', # Change y-axis label
        ylabel_fontsize=30, # Change y-axis label fontsize
        xticks_rotation=45, # Change x-axis ticks rotation
        xticks_fontsize=5) # Change x-axis ticks label fontsize
vg.show()

Why is a batch referred to as a stack and a gene referred to as a group?

A profile figure (essentially a grid of barplots) can be generated without using Nextclade data or even sequence-specific data. For this reason, the variable names were chosen to be agnostic. See Other features.

Ordering genes

VARGRAM automatically determines which gene barplot goes to which row and in what order in an attempt to create a compact figure. However, you may want to rearrange the rows and/or show only certain genes. You can order genes according to their start position and/or fix the profile to have a horizontal layout through the profile() method:

vg = vargram(data='path/to/nextclade_analysis.csv')
vg.profile(order=True, # Order the genes based on the annotation file
           flat=True) # Force a horizontal layout
vg.show()

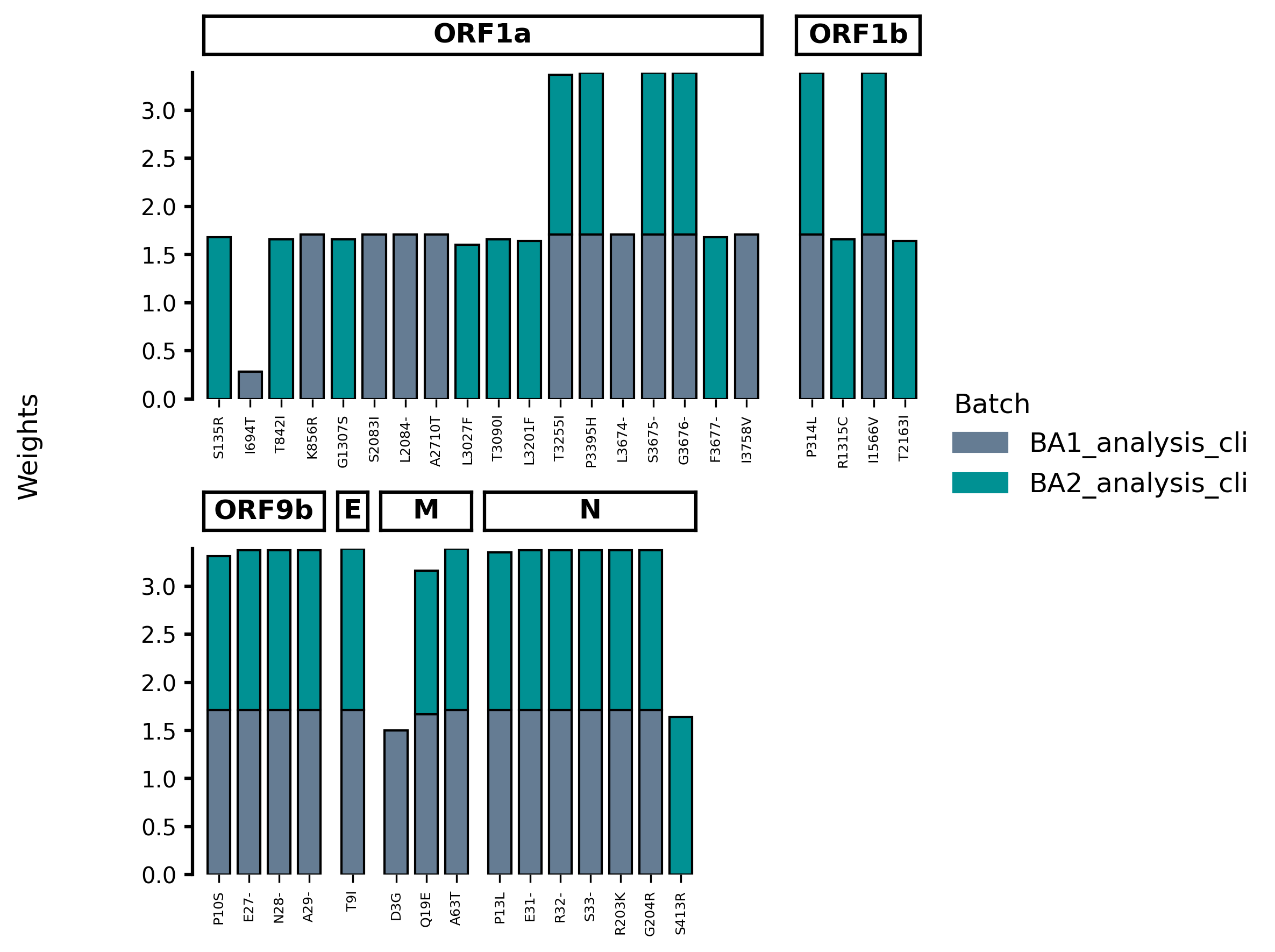

If you want to keep only certain genes and specify a particular order, then you can use the struct() method, which takes one required positional argument: a formatted string where gene or group names are separated by a comma and rows are separated by a forward slash.

Suppose we have the following genes: 'ORF1a', 'ORF1b', 'M', 'S', and 'N'. Say we only want to keep 'ORF1a', 'ORF1b' and 'M' such that on the first row 'M' is followed by 'ORF1a' and on the second row is 'ORF1b' alone. This new structure can be specified as follows:

vg = vargram(data='path/to/nextclade_analysis.csv')
vg.profile()
vg.struct('M,ORF1a/ORF1b') # Put M & ORF1a in first row in that order
                           # and put ORF1b in second row
vg.show()

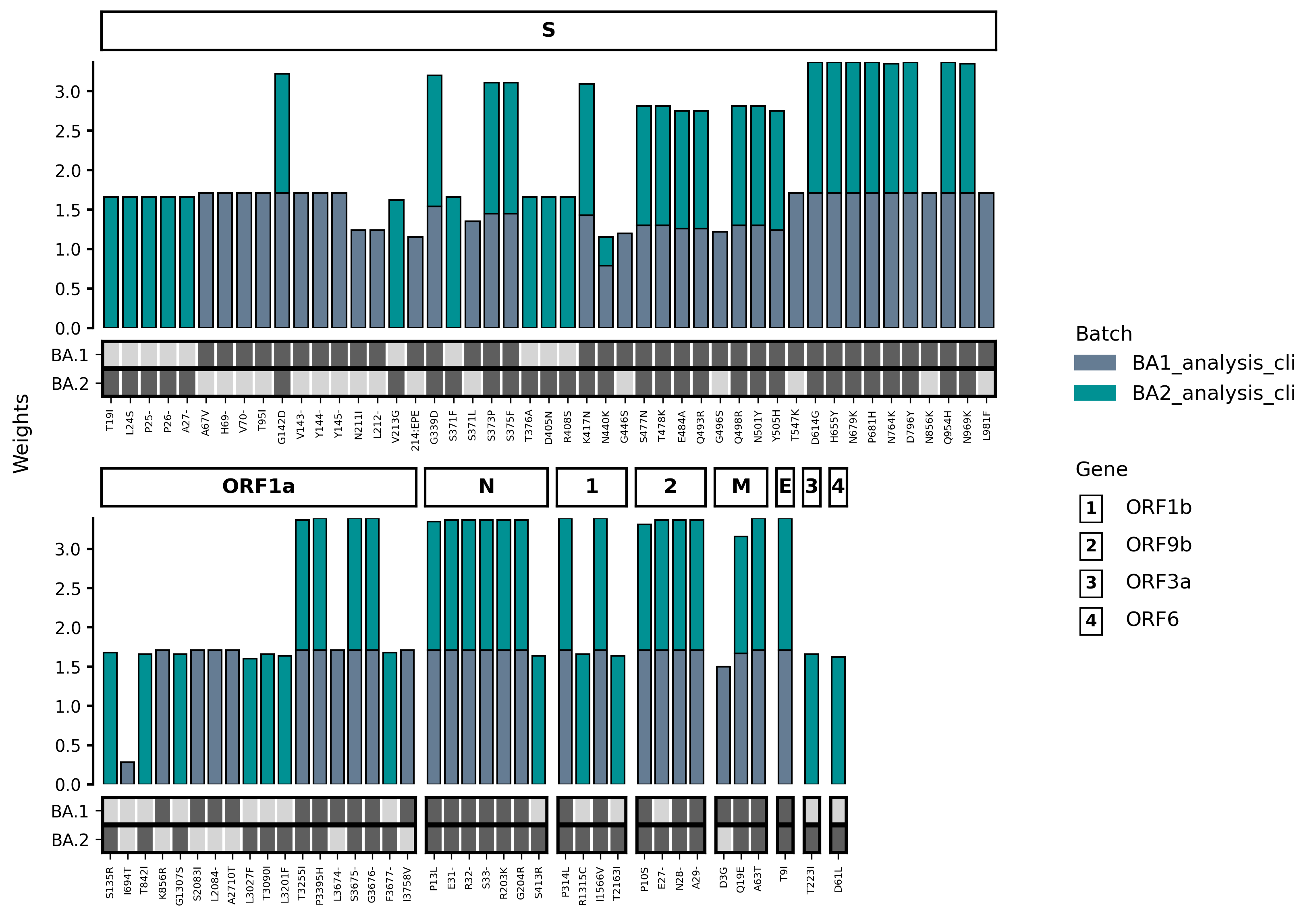

Adding and creating keys

It is often helpful not just to compare batches with each other but also against reference lineages. This can be done by adding a key, which is a CSV or TSV file withgene and mutation columns. The mutations can be representative ("key") mutations of a lineage or they could just be mutations of interest. VARGRAM will mark these mutations in the profile through a heatmap below the barplots. The keys can be added with the key() method. Each key is added individually:

vg = vargram(data='path/to/nextclade_analysis.csv')
vg.profile()
vg.key('path/to/my_key1.csv') # Provide key file 1
vg.key('path/to/my_key2.csv',
        label='Key 2') # Add an optional label
vg.show()

You can manually create these key files yourself, but note that the format of mutation must follow Nextclade's notation. See the aaSubstitutions, aaDeletions, and aaInsertions definitions.

Alternatively, the VARGRAM summary data can serve as a key file. To create a key with VARGRAM, simply provide the batch of sequences from which key mutations will be identified. In this case, those key mutations can be identified as those that met a high threshold.

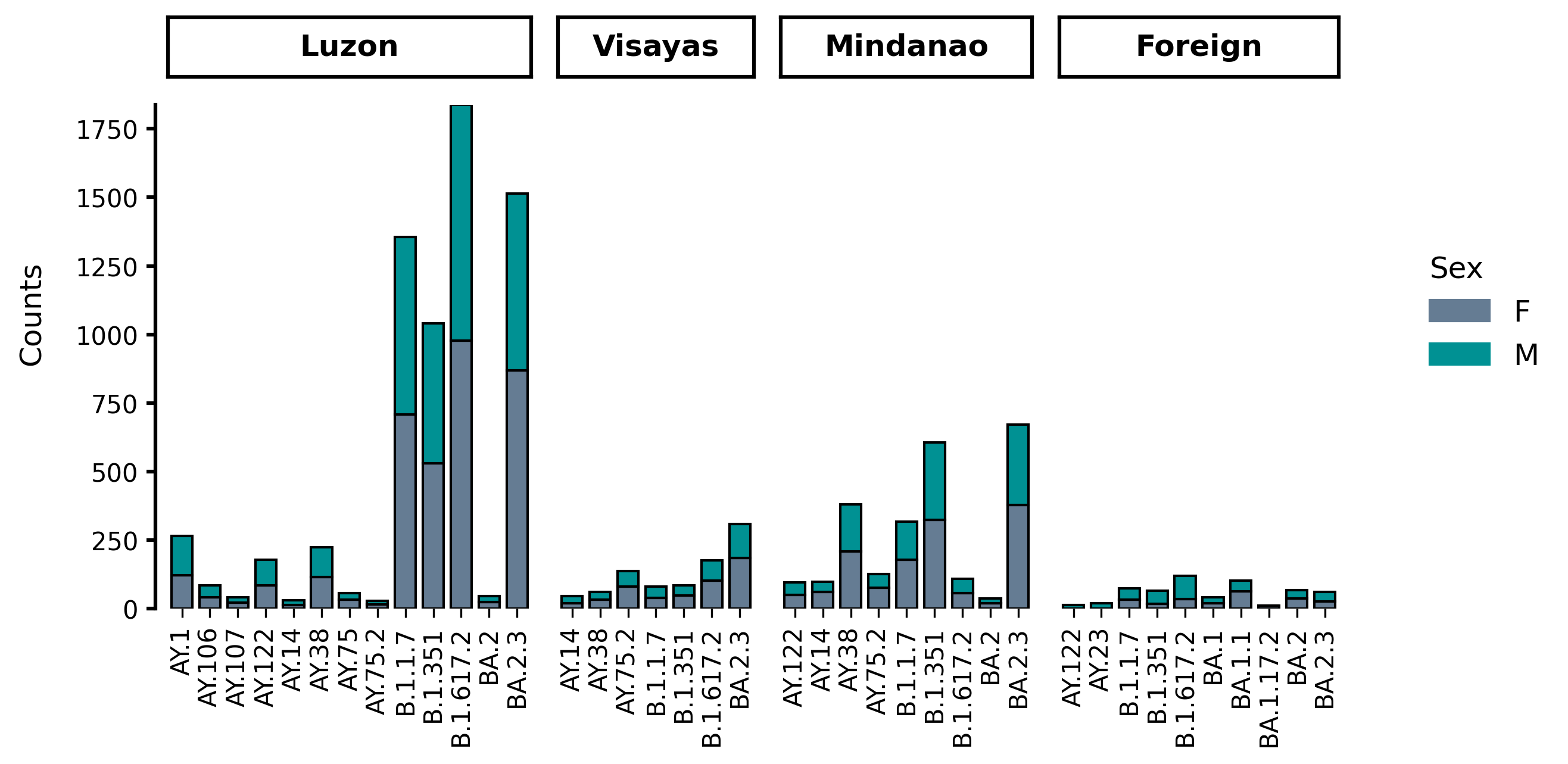

Other features

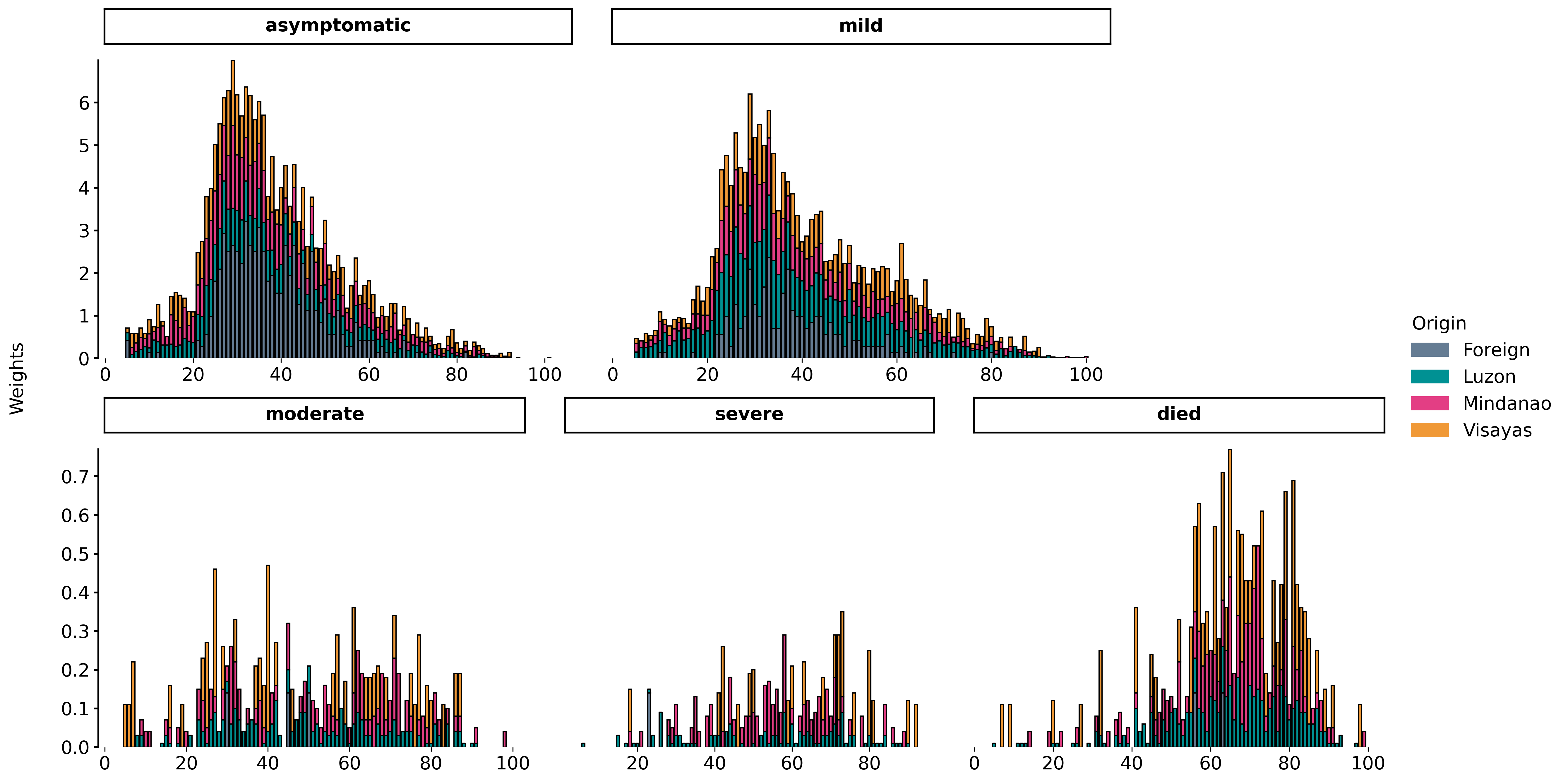

Although VARGRAM was made in the context of viral genomic surveillance, data from any CSV or TSV file or a Pandas DataFrame can be extracted to generate a mutation profile-type figure. The input tabular data needs to have three columns that will play the role of the gene, the mutation, and the batch.

These columns can be specified in the profile() method through the arguments x, group, and stack:

  1. The x (default mutation) argument specifies the column from which to take the x-axis values for the bar plots.
  2. The group (default gene) argument specifies the column whose unique values will determine the bar plots (with their corresponding x values) to be created.
  3. The stack (default batch) argument specifies the column for the batches or the sets of (x value, y value) pairs.

For example, consider the file XBB_analysis_web.tsv from the test data. This is a Nextclade analysis file, but we can still use it to show the flexibility of VARGRAM. Suppose that we want the clade column to play the role of the genes, the unique values of the qc.overallStatus to be the batches, and the x-axis values to be given by the Nextclade_pango column. The code should look as follows:

vg = vargram(data='test_data/analysis/XBB_analysis_web.tsv',
            format='delimited') # (1)
vg.profile(group='clade',
           x='Nextclade_pango',
           stack='qc.overallStatus',
           threshold=1
           ytype='counts')
vg.aes(stack_title="Quality Control",
       group_title="Clade")
vg.show()
  1. When the data argument is used and the optional format argument is not, VARGRAM assumes that the file is a Nextclade analysis file which would result to default, fixed settings. By specifying format=delimited, VARGRAM would not run the file through the internal Nextclade wrangler functions.

This will result to the following profile: plot
